Carbon Winch - Scout Pro - 12000lb V3 - Professional Fitment Included
$1430

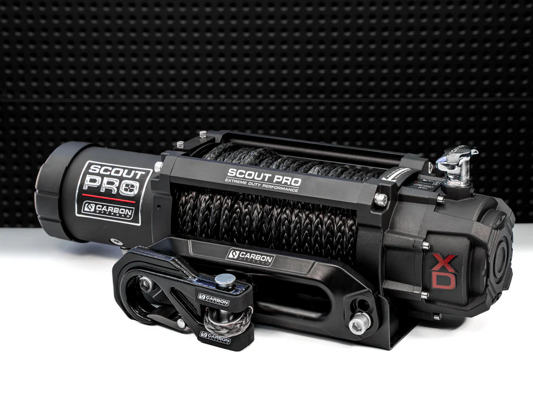

The Carbon Offroad Scout Pro Extreme Duty 12,000lb Winch is engineered for demanding off-road recovery, offering the perfect balance of power, durability, and premium inclusions. Designed for frequent use in harsh conditions, it features a 7.0HP motor, 180:1 heavy-duty gearbox, and a robust 2023 V3 chassis for reliable performance.
With an 11mm synthetic rope rated at 9,000kg MBS and premium accessories such as the MegaPro Billet Fairlead and MegaPro Rope Thimble, the Scout Pro delivers uncompromising strength straight out of the box.
⚠️ Please Note: Mild variations may occur from vehicle to vehicle. For the best results and a smooth installation, please discuss your specific vehicle requirements with The Garage Miami team.
Key Features
- 12,000lb (5,450kg) rated line pull
- Carbon Offroad 2023 V3 chassis
- 7.0HP high-output motor
- 180:1 heavy-duty gearbox

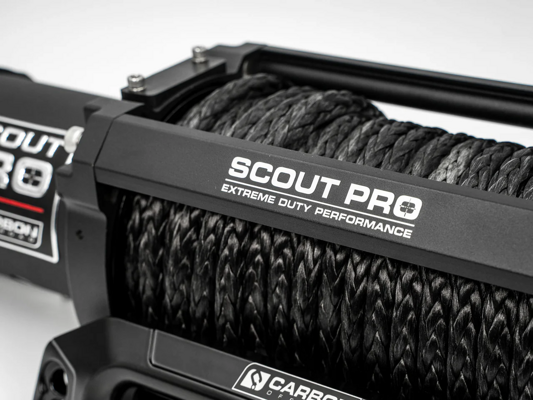

- 11mm x 24m synthetic rope with HD thimble
- MegaPro CNC billet anodised fairlead
- MegaPro 16T soft shackle–compatible rope thimble
- Upgraded heavy-duty solenoid unit
- Installed weight: 26.7kg
- Includes fitment hardware – installer/end-user must confirm clearance before fitting
Performance Specs (12V DC, 1st Drum Layer)
| Line Pull | Line Speed | Current | Max Pull by Layer |
|---|---|---|---|
| 0kg | 43.3 ft/min (13.2 m/min) | 70A | 1st: 12,000lb (5,450kg) |
| 910kg (2,000lb) | 14.8 ft/min (4.5 m/min) | 115A | 2nd: 9,800lb (4,450kg) |
| 1,810kg (4,000lb) | 12.8 ft/min (3.9 m/min) | 165A | 3rd: 8,300lb (3,770kg) |
| 2,720kg (6,000lb) | 9.2 ft/min (2.8 m/min) | 215A | 4th: 7,200lb (3,270kg) |
| 4,540kg (10,000lb) | 7.5 ft/min (2.3 m/min) | 310A | — |
| 5,450kg (12,000lb) | 5.6 ft/min (1.7 m/min) | 370A | — |
CODE: CW-XD12-BLK
